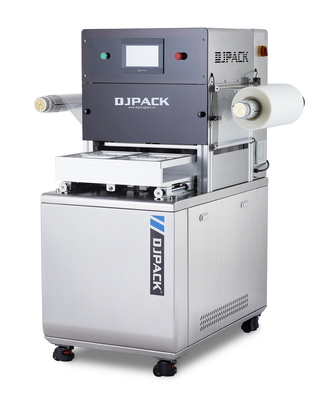

Item Name: VACUUM TYPE MAP TRAY SEALER
Description: DQ400L-V Map Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. Modified atmosphere packaging machine features quality assurance, keeping fresh, color retention, complexion preservation and taste retention.
Technical Characters:
1. Programmable control system.
2. Touch screen control panel.
3. 304 stainless steel main construction.
4. Fault real time prompting function.
5. Mould is available to be changed and customized mould is acceptable.
Technology specifications:
|
Model |
DQ400L-V |
|
Max. Tray Dimension(mm) |
490×330×60 |
|
Max. Width of Film(mm) |
390 |
|
Max. Diameter of Film(mm) |
220 |
|
Packing Speed(cycle/min) |
2-3 |
|
Vacuum Pump(cbm/hour) |
63 |
|
Air Exchanging Rate(%) |
≥99 |
|
Electrical Requirement(v/hz) |
380/50 220/60 |
|
Consume Power(kw) |
3.5 |
|
N.W(kg) |
350 |
|
G.W(kg) |
410 |
|
Machine Dimension(mm) |
1200×1050×1500 |
|
Shipping Dimension(mm) |
1300×1150×1700 |
Max. Mould(Die Plate) Format(mm)
